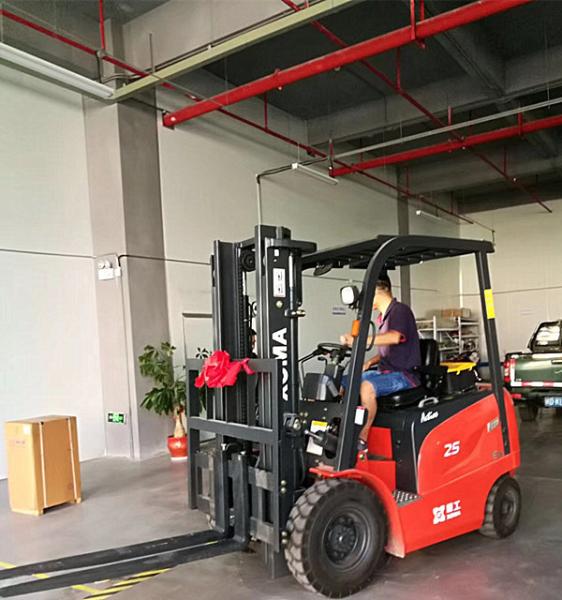

With 3 Stage free lifting mast 2.5 Ton Electric Forklift truck
The same safety design concept as XGMA diesel forklift, 2.5T electric ac forklifts equip with wide-view mast, high strength overhead guard superior design frame.small turning radius,charging faster, uninterrupted operation.
| Product Name | Unit | XG525B-A5 | ||
| Model | CPD25 | |||
| Capacity | kg | 1600 | ||
| Load center distance | mm | 500 | ||
| Power type | Battery | |||
| Operation type | Seat | |||
| Tire type | Front/Rear | Pre tire | ||
| Wheel (Driving wheel) | Front/Rear | mm | 2*/2 | |
| Max.Lifting Height | mm | 3000 | ||
| Free Lifting height(H1) | mm | 110 | ||
| Fork size | mm | 1070*122*40 | ||
| Mast tilt angle | ° | 6/12 | ||
| Outside dimensions | Overal length (contain fork)(L) | mm | 2140 | |
| Overal width(W) | mm | 1100 | ||
| Mast min.height | mm | 140 | ||
| Max.lifting height (Include Load-backrest) | mm | 4065 | ||
| Overhead guard height(H) | mm | 2130 | ||
| Turning radium | (Min. outside) | mm | 1970 | |
| Fork overhang | km/h | 475 | ||
| Speed | Driving | Forward gear | km/h | 15 |
| Backward gear | mm/s | 15 | ||
| Lifting | mm/s | 275 | ||
| Falling | % | <600/>300 | ||
| Max. Gradeability | Full Load | kg | 15 | |
| Overal weight | Empty Load | 5000 | ||
| Forklift Tire | Front/Rear Quantity | 22 | ||
| Front/Rear Size | 6.50-10-10PR/ 5.00-8-10PR | |||
| Wheel base | mm | 1680 | ||
| Wheel distance | Forward(w1) | mm | 1000 | |
| Ground clearance (Empty Load) | Min.Point | mm | 125 | |
| Central frame | mm | 140 | ||
| Brake | Driving brake | Hydraulic brake | ||
| Parking brake | Automatic brake | |||
| Battery | Voktage/Capacity | V/Ah | 48v/420Ah | |
| Weight | Kg | 1145-1420 | ||
| Motor | Power | Moving | KW | 8(AC) |
| Power | Lifting | KW | 7.5(DC) |
Electric Forklift Features
The distinctive features of the new 1.5-3.5t CPD-E series electric four-wheel forklift as follows:
(1) Versatility of use due to compact design and minimal operating
space requirements. Compact dimensions combined with superb
maneuverability.
(2) High stability, both when stationary and cornering, due to long
wheelbase, low centre of gravity and wide tyres.
(3) Scientific ergonomic application.
(4) High-capacity battery.
FAQ
1. What's the Certificate do you have?
XGMA workshop meet with the ISO9001 Quality System. And all of our
products are with CE certificate.
2. Can you customize and design as the clients' requirement?
XGMA will try its best to meet all kinds of clients' special
requirements. And for new products that have not been into the
market yet, we have our technical team to help the clients. All
kinds of attachments such as roll paper clamp, side shifter and so
on can be available.
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the
first.
4. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery.
5. Delivery date:
If clients need normal products, we will deliver the products
within 15days. If clients need customerized products, the delivery
date depend on the requirements.
|
|
