BYD 3.5 Ton Counterbalance Electric battery forklift
BYD Electric Forklift specification:
| Model | CPD35 | |||
| Features | 1.1 | Manufacturer | BYD | |
| 1.2 | Driver | |||
| 1.3 | Operator type | |||
| 1.4 | Load capacity/rated load | kg | 3500 | |
| 1.5 | Load center | mm | 500 | |
| 1.6 | Load distance center of support arm wheel to face of forks | mm | 460 | |
| 1.7 | Wheelbase | mm | 1725 | |
| Weight | 2.1 | Service weight including battery | kg | 5440 |
| 2.2 | Axle load with load driver/castor/fork wheel | kg | 7722/1218 | |
| 2.3 | Axle load without load driver/castor/fork wheel | kg | 2274/3166 | |
| Wheels | 3.1 | Drive/castor/fork wheel | ||
| 3.2 | Wheel size ,front | mm | 23*10-12 | |
| 3.3 | Wheel size ,rear | mm | 200/50-10 | |
| 3.4 | Additional wheels dimensions | mm | ||
| 3.5 | /x= Wheels number front /rear=driven wheels | 2X/2 | ||
| 3.6 | Track width front | mm | 1110 | |
| 3.7 | Track width rear | mm | 955 | |
| Size | 4.1 | Overall length | mm | 3630 |
| 4.2 | Length of face of forks | mm | 2560 | |
| 4.3 | Overall width | mm | 1360 | |
| 4.4 | Fork height | mm | 3000 | |
| 4.5 | Max height | mm | 4230 | |
| 4.6 | Min height | mm | 2020 | |
| 4.7 | Overhead guard height | mm | 2215 | |
| 4.8 | Height of tiller indrive position | mm | 1156 | |
| 4.9 | Stand heightoptional platform | mm | 715 | |
| 4.1 | // Fork dimensions | s/e/l mm | 50X125X1070 | |
| 4.11 | Width over forks | mm | 1360 | |
| 4.12 | Tilt range Before / after | deg | 5/8 | |
| 4.13 | Free Lift | mm | 105 | |
| 4.14 | Fork spread | mm | ||
| 4.15 | Minimum turing radius | mm | 1770 | |
| 4.16 | Ground Clearance | mm | 95 | |
| Speed | 5.1 | / Travel speedwith/without load | km/h | 20/20 |
| 5.2 | / Lift speedwith/without load | mm/s | 380/450 | |
| 5.3 | / Lift speedwith/without load | mm/s | 550/450 | |
| 5.4 | / Max.gradeability,with/without load | % | 20/20 | |
| Power | 6.1 | Drive motor rating S2 60 min | kW | 10*2 |
| 6.2 | Lift motor rating at S3 15% | kW | 24 | |
| 6.3 | Battery voltage/nominal capacity K5 | V/Ah | 80/540 | |
| 6.4 | Battery weight | kg | 1460 | |
Braking energy feedback system
In the process of deceleration or braking, braking energy feedback
system, will be the vehicle’s kinetic energy into electricity, thus
to recharge the battery.
Easy to grasp large auxiliary armrest
Design of large auxiliary is easy to grasp, make the driver
boarding homework easier
Data plate
Humanized design space to facilitate operations record put.

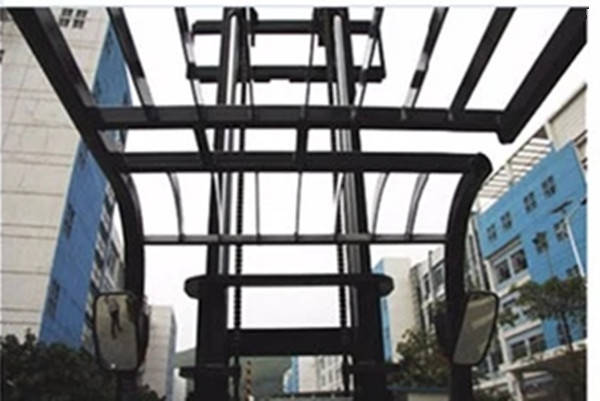

Field of vision
Grille to protect the top of the head frame provides drivers with
good vision.
Combination of the lamp
Turn signals,brake lights, reversing light into an organic whole,
can effectively improve the safety of the driver
Pallet fork down buffer system
Pallet fork will contact with the ground gradually slow down,
reduce the collision and to protect the cargo
FAQ
1. What's the Certificate do you have?
XGMA workshop meet with the ISO9001 Quality System. And all of our
products are with CE certificate.
2. Can you customize and design as the clients' requirement?
XGMA will try its best to meet all kinds of clients' special
requirements. And for new products that have not been into the
market yet, we have our technical team to help the clients. All
kinds of attachments such as roll paper clamp, side shifter and so
on can be available.
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the
first.
4. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery.
5. Delivery date:
If clients need normal products, we will deliver the products
within 15days. If clients need customerized products, the delivery
date depend on the requirements.
|
|
