Xiamen XGMA Machinery Equipment Co., Ltd.
8 Years
| Ask Lasest Price | |
| Brand Name : | XGMA |
| Model Number : | XGMA-CPCD535 |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100 per month |
| Delivery Time : | 5~8 work days |

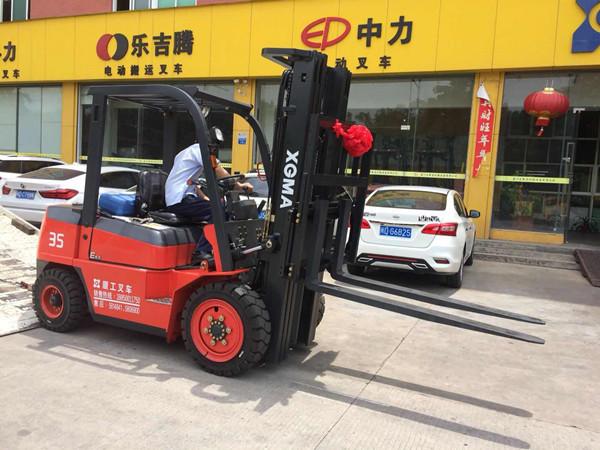

XGMA Forklift Truck Lower Consumption Diesel 3Ton 3.5Ton Forklift
XGMA Forklift Efficiency Pioneer Flexible Driving
The E-series 2~3.5T diesel forklifts, sincw its birth, has been defined to be not only a tool to complete your work but also a new maner to enjoy your work and its hunan-oriented design will provide more convenience, joy and comfortable experience for you.
The deliberate wide-view mast design focuses on the robustness and high interior quality to ensure safer opteration and a wider from view.
| Character | 1.1 | Manufacturer | XGMA | |
| 1.2 | model | CPCD35 | ||
| 1.3 | Product name | XG535-DT5 | ||
| 1.4 | Power size | Diesel | ||
| 1.5 | Rated Capacity | kg | 3500 | |
| Dimension | 2.1 | load center distance | mm | 500 |
| 2.2 | Lifting height | mm | 3000 | |
| 2.3 | Free lifting height | mm | 150 | |
| 2.4 | Mast tilt | α/β | 6/12 | |
| 2.5 | Overall Length | mm | 3860 | |
| 2.6 | Overall Width | mm | 1220 | |
| 2.7 | Mast without lifting height | mm | 2160 | |
| 2.8 | Right Angle stacking min. channel width | mm | 4100 | |
| 2.9 | Overhead height | mm | 2150 | |
| 2.11 | Fork(L*W*H) | mm | 1070*125*50 | |
| 2.12 | Front overhang/Rear overhang | mm | 480/555 | |
| 2.13 | Wheel distance | mm | 1760 | |
| 2.14 | Min. Turning radium | mm | 2420 | |
| Specification | 3.1 | Min.ground clearance | mm | 140 |
| 3.2 | Max.driving speed(Empty load) | km/h | 20 | |
| 3.3 | Lifting speed(Full load) | mm/s | 360 | |
| 3.4 | Max.traction | KN | 16 | |
| 3.5 | Gradeability | ° | 20 | |
| Tires | 4.1 | Overall Weight | kg | 4550 |
| 4.2 | Front tire size | 28*9-15-14PR | ||
| 4.3 | Rear tire size | 6.50-10-10PR | ||
| 4.4 | wheel distance(Front/Rear) | mm | 1000/980 | |
| Driving,transmission gear device | 5.1 | Engine Model | 4JG2PE-01 | |
| 5.2 | Eninge rated power/rotate speed | kw/r.p.m | 45/2450 | |
| 5.3 | Max.torque/rotate speed | N.w/r.p.m | 184.7/1700 | |
| 5.4 | Gears (Front/Rear) | 1/1 | ||
| 5.5 | Battery(Valtage/capacity) | V/Ah | 12/80 | |
| 5.6 | Fuel box capacity | L | 70 | |
| 5.7 | Hydraulic oil box capacity | L | 70 |
FAQ
1. What's the Certificate do you have?
XGMA workshop meet with the ISO9001 Quality System. And all of our
products are with CE certificate.
2. Can you customize and design as the clients' requirement?
XGMA will try its best to meet all kinds of clients' special
requirements. And for new products that have not been into the
market yet, we have our technical team to help the clients. All
kinds of attachments such as roll paper clamp, side shifter and so
on can be available.
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the
first.
4. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery.
5. Delivery date:
If clients need normal products, we will deliver the products
within 15days. If clients need customerized products, the delivery
date depend on the requirements.
|
|
