Xiamen XGMA Machinery Equipment Co., Ltd.
8 Years
| Ask Lasest Price | |
| Brand Name : | BYD |
| Model Number : | CBD20 |
| Certification : | ISO9001 |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100 per month |
| Delivery Time : | 5~8 work days |

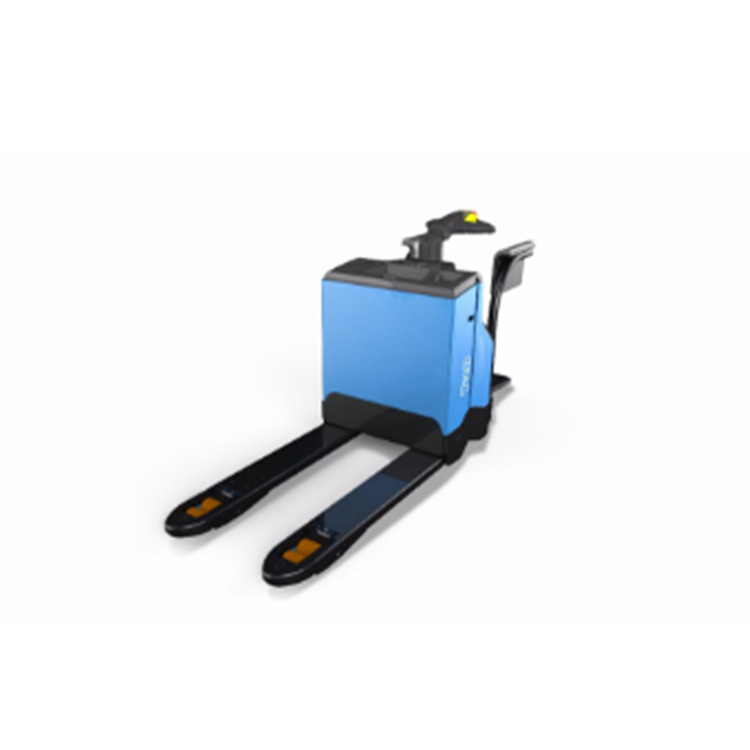

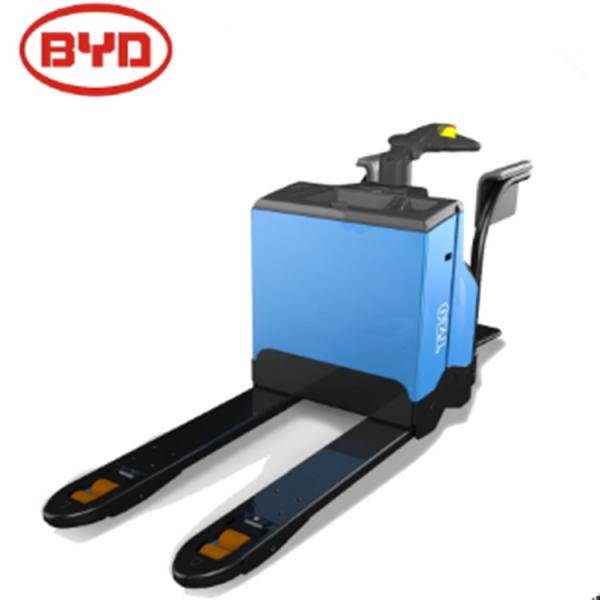

AC motor BYD 2000kg electric pallet truck
Pallet Truck Specification:
CBD20 | ||||
| Features | 1.1 | Manufacturer | BYD | |
| 1.2 | Driver | |||
| 1.3 | Operator type | / | ||
| 1.4 | Load capacity/rated load | kg | 2000 | |
| 1.5 | Load center | mm | 600 | |
| 1.6 | Load distance center of support arm wheel to face of forks | mm | 930 | |
| 1.7 | Wheelbase | mm | 1365 | |
| Weight | 2.1 | ) Service weight including battery | kg | 550 |
| 2.2 | Axle load with load driver/castor/fork wheel | kg | 815/4150/1580 | |
| 2.3 | Axle load without load driver/castor/fork wheel | kg | 260/150/135 | |
| Wheels | 3.1 | Drive/castor/fork wheel | ||
| 3.2 | Wheel size ,front | mm | 230X70 | |
| 3.3 | Wheel size ,rear | mm | 85X70 | |
| 3.4 | Additional wheels dimensions | mm | 125X50 | |
| 3.5 | /x= Wheels number front /rear=driven wheels | 1X+2/4 | ||
| 3.6 | Track width front | mm | 430 | |
| 3.7 | Track width rear | mm | 510 | |
| Size | 4.1 | Overall length | mm | 1780 |
| 4.2 | ) Length of face of forks | mm | 605 | |
| 4.3 | Overall width | mm | 725 | |
| 4.4 | Fork height | mm | 110 | |
| 4.5 | Max height | mm | 205 | |
| 4.6 | Min height | mm | 95 | |
| 4.7 | Overhead guard height | mm | ||
| 4.8 | Height of tiller in drive position | mm | 1340/1055 | |
| 4.9 | Stand height optional platform | mm | 95 | |
| 4.1 | Fork dimensions | s/e/l mm | 50/180/1120 | |
| 4.11 | Width over forks | mm | 690 | |
| 4.12 | Tilt range Before / after | deg | ||
| 4.13 | Free Lift | mm | 205 | |
| 4.14 | mm | 2110 | ||
| 4.15 | Fork spread | mm | ||
| 4.16 | Minimum Turing radius | mm | 1700 | |
| Speed | 5.1 | Travel speed with/without load | km/h | 5.5/6 |
| 5.2 | / Lift speed with/without load | mm/s | 50/60 | |
| 5.3 | / Lift speed with/without load | mm/s | 70/65 | |
| 5.4 | Max.gradeability,with/without load | % | 815 | |
| 5.5 | Service brake | |||
| Power | 6.1 | Drive motor rating S2 60min | kW | 2 |
| 6.2 | Lift motor rating at S3 15% | kW | 1.5 | |
| 6.3 | Battery voltage/nominal capacity K5 | V/Ah | 24/200 | |
| 6.4 | Battery weight | kg | 90 | |
| Control mode | 7.1 | Type of drive control | ZAPI AC0 |
FAQ
1. What's the Certificate do you have?
XGMA workshop meet with the ISO9001 Quality System. And all of our
products are with CE certificate.
2. Can you customize and design as the clients' requirement?
XGMA will try its best to meet all kinds of clients' special
requirements. And for new products that have not been into the
market yet, we have our technical team to help the clients. All
kinds of attachments such as roll paper clamp, side shifter and so
on can be available.
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the
first.
4. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery.
5. Delivery date:
If clients need normal products, we will deliver the products
within 15days. If clients need customerized products, the delivery
date depend on the requirements.
|
|
