Xiamen XGMA Machinery Equipment Co., Ltd.
8 Years
| Ask Lasest Price | |
| Brand Name : | YXC |
| Model Number : | BYD-CPCD20 |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100 per month |
| Delivery Time : | 5~8 work days |

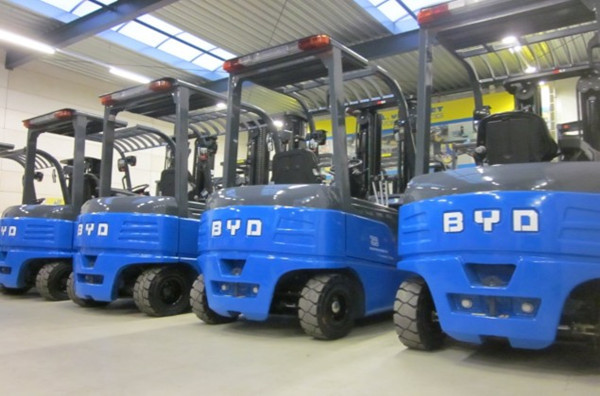

With AC Motor Power Souce Lifting Height 3m 2 ton Electric Forklift
Flexible Steering System
Adopting dynamic load sensing priority steerin gsystem, more quickly steering, smaller turning radius, more flexible driving performance.
Efficient Driving System
Advanced dual motor driving system, compact structure, better driving and climbing performance, larger torque, more powerful output.
| Character | 1.2 | model | FB16S-C2 | |
| 1.4 | Power | Electric | ||
| 1.5 | Rated Capacity | kg | 1600 | |
| Dimension | 2.1 | load center distance | mm | 500 |
| 2.2 | Lifting height | mm | 3000 | |
| 2.3 | Free lifting height | mm | 95 | |
| 2.5 | Overall Length | mm | 2100 | |
| 2.6 | Overall Width | mm | 1100 | |
| 2.7 | Mast without lifting height | mm | 2010 | |
| 2.9 | Overhead height | mm | 2055 | |
| 2.11 | Fork(L*W*H) | mm | 920*120*35 | |
| 2.14 | Min. Turning radium | mm | 1690 | |
| Specification | 3.1 | Min.ground clearance | mm | 90 |
| 3.2 | Max.driving speed(Empty load) | km/h | 14 | |
| 3.3 | Lifting speed(Full load) | mm/s | 13 | |
| 3.5 | Gradeability | ° | 6 | |
| Tires | 4.1 | Overall Weight | kg | 3420 |
| 4.2 | Front tire size | 18*8-8 | ||
| 4.3 | Rear tire size | 16*6-8 | ||
| 4.4 | wheel distance(Front/Rear) | mm | 1000/980 | |
| Battery | 5.1 | Battery(Valtage/capacity) | V/Ah | 48/490 |
| 5.2 | size | mm | 970*530*685 | |
| 5.3 | Motor | Kw | 4.5*2 |
FAQ
1.What's the Certificate do you have?
XGMA workshop meet with the ISO9001 Quality System. And all of our
products are with CE certificate.
2. Can you customize and design as the clients' requirement?
XGMA will try its best to meet all kinds of clients' special
requirements. And for new products that have not been into the
market yet, we have our technical team to help the clients. All
kinds of attachments such as roll paper clamp, side shifter and so
on can be available.
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the
first.
4.What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery.
5.Delivery date:
If clients need normal products, we will deliver the products
within 15days. If clients need customerized products, the delivery
date depend on the requirements.
|
|
