Xiamen XGMA Machinery Equipment Co., Ltd.
8 Years
| Ask Lasest Price | |
| Brand Name : | YXC |
| Model Number : | KLR |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100 per month |
| Delivery Time : | 5~8 work days |

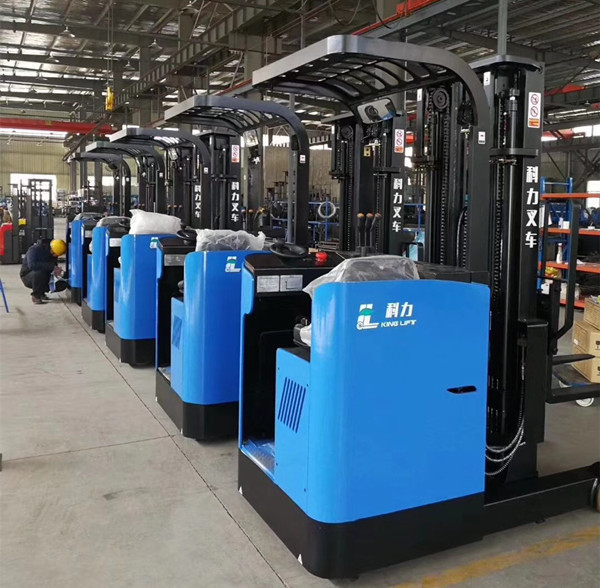

Capacity 1 Ton 1.5 Ton 2 Ton 2.5Ton 7.5m lifting height electric reach truck
Truck Specificetion:
| Model | KLR15 | KLR20 | KLR25 | |||
| Performace | Maximum load capacity | kg | 1500 | 2000 | 2500 | |
| with load center | Q | mm | 500 | 500 | 500 | |
| Maxmum lifting height | H3 | mm | 1600 | 1600 | 1600 | |
| Travel speed(without load) | km/h | 8 | 8 | 8 | ||
| Travel speed(with load) | km/h | 7 | 7 | 7 | ||
| Lifting spedd(without load) | mm/s | 270 | 270 | 270 | ||
| Lifting spedd(with load) | mm/s | 150 | 150 | 150 | ||
| Ascend slope ability(without load) | % | 15 | 15 | 15 | ||
| Ascend slope ability(with load) | % | 8 | 8 | 8 | ||
| Dimensions | Overlall length of frame | L | mm | 1880 | 1880 | 1880 |
| Overlall width of frame | B | mm | 1270 | 1270 | 1270 | |
| Mast lowered height | H1 | mm | 2200 | 2200 | 2200 | |
| Mast height(mast lifted with backrest) | H4 | mm | 2950 | 2950 | 2950 | |
| Wheelbase | Y | mm | 1460 | 1460 | 1460 | |
| Fork width | mm | 100/40/1070 | 100/40/1070 | 100/40/1070 | ||
| Minmum turning radius | Wal | mm | 2070 | 2070 | 2070 | |
| Tire | Front wheel | mm | 267*114 | 267*114 | 267*114 | |
| Drive wheel | mm | 340*130 | 340*130 | 340*130 | ||
| Caster wheel | mm | 130*55 | 130*55 | 130*55 | ||
| Wheel material | polyurethane | |||||
| Electrical components | Drive motor type | AC series motor | ||||
| Rated output | kw | 5 | 5 | 5 | ||
| Hoist motor type | DC series motor | |||||
| Rated output | kw | 6.3 | 6.3 | 6.3 | ||
| Battery | Voltag | V | 48 | 48 | 48 | |
| Capacity | AH | 440 | 440 | 440 | ||
| Weight | kg | 486 | 486 | 486 | ||
Configuration:
1. The standard fork with Leaning back function
2. ESP electric turning system and small dia steering wheel, comfortable turning operator,CURTIS turning controller
3. CURTIS driving controller, ALBRGHT contactor, AMP waterproof Power connector
4. Standard side - pull battery quick change device, Suitable for forklift continuous operation
5. Comfortable seat
FAQ
1. What's the Certificate do you have?
XGMA workshop meet with the ISO9001 Quality System. And all of our
products are with CE certificate.
2. Can you customize and design as the clients' requirement?
XGMA will try its best to meet all kinds of clients' special
requirements. And for new products that have not been into the
market yet, we have our technical team to help the clients. All
kinds of attachments such as roll paper clamp, side shifter and so
on can be available.
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the
first.
4. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery.
5. Delivery date:
If clients need normal products, we will deliver the products
within 15days. If clients need customerized products, the delivery
date depend on the requirements.
|
|
